Quick Specs:
- OD: 6mm (0.236")
- Length: 1.5M
- DOV: 0°
- FOV: 85°
- DOF: 10-100mm
- Articulation: 360 Degree/ 4-way controlled by joystick
- Illumination: LED 16,000 Lux
- Industry pioneered insertion tube replacement technology can rapidly replace insertion tube of different specifications within 20 seconds.
- Built-in 3.5 inch Display: 1280 X 720
- Photo capture function while recording video
- Output: USB/HDMI/SD Card Slot
- The insertion tube and probe are waterproof, oil resistant and corrosion resistant (IP67)
- Tungsten braided tube
- Sapphire protective lens

The iShot VistaScope 6mm x 1.5M, with 4-way Casting Articulation and LED illumination was developed after years of careful study and development of advanced technology, independent innovation, and research to address the needs of the Investment Casting Industry. It's portability and ease of use, make it an easy to pick up inspection tool, that is designed for the challenges of the casting environment. With it's 360° arbitrarily oriented joystick, extremely tight 160° of articulation, finding the critical core passages is well within reach. It's lightweight, and portable design, including it's vibrant 3.5" LCD screen, allow inspection to take place in any area of the facility.

Camera Diameter(mm) Φ6mm
Camera Material Titanium alloy
Camera Pixel 300,000
Depth of Field Standard: 10mm～100mm
Angle of Field 120°
Image Magnification 4X
Light Control 7 levels
Bright/Chroma/ Contrast Ratio Adjustment 0-16 levels
White Balance Auto white balance
Bending Control 360°all-way mechanical control/tow-way articulation
Bending Angle ≥160°
Effective Working Length 1m
Insert Tube Quadruple tungsten-braided tubes
Language Chinese, English, Russian, ect.
Display Highlight 3.5 inches TFT LCD Display
Resolution 640*480
Image/Video Format JPEG/AVI
Image Resolution 640*480
Host Structure Handheld Design
Memory Standard SD card:8G, Maximum: 32G
Data I/O port Micro-USB port
Video output port mini HDMI
Probe articulation control: The speed of the probe articulation is controlled byrocker.Release the rocker to complete
Waterproof Camera/Object glass/Tubes:IP67
Host Working Time ≥4.5 hours
Weight ≤0.45kg（with batteries）
Power Supply Rechargeable lithium battery（dismountable)
Battery Capacity 4.2V,3200mAh
Power Consumption 3W Charging Parameters DC5V, Maximum current:1A
Warranty Period Free charge for one year, life-long maintenance.

We're here to help

Borescopes

iShot VistaScope 6mm x 1.5M, 4-way Casting Articulation w/ LED Illumination

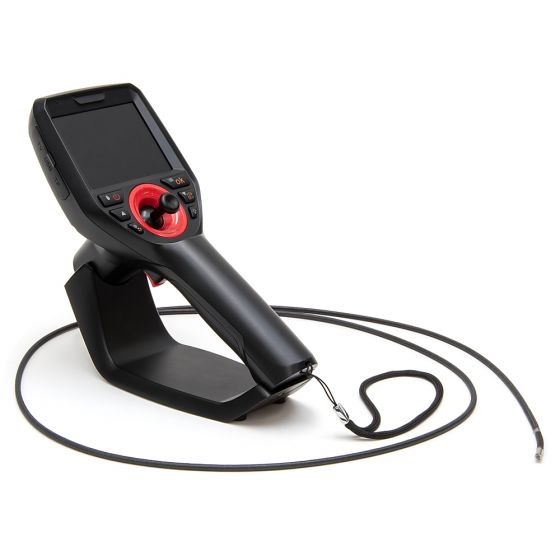

iShot® VistaScope LED Industrial Borescope 2.0mm DIRECT VIEW

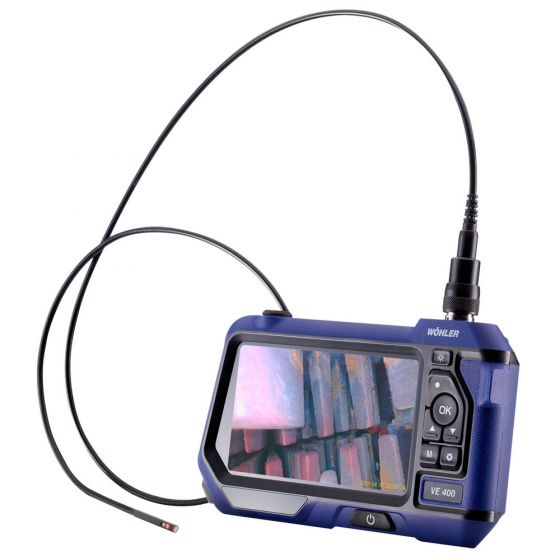

Wohler VE 400 HD Video Endoscope - 6920

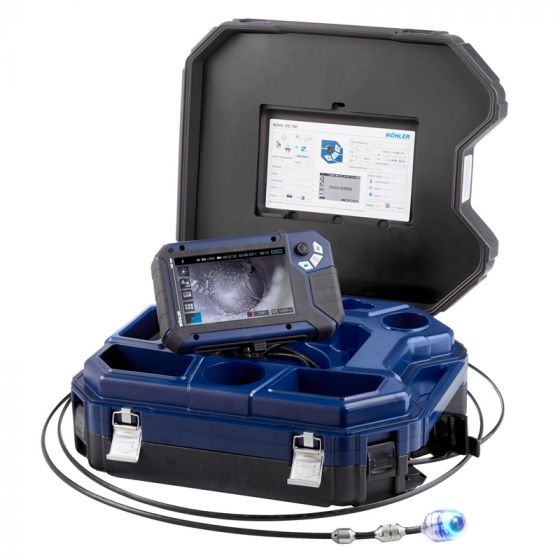

Wohler VIS 700 HD Camera Inspection System with 1.5" Camera Head - 7082

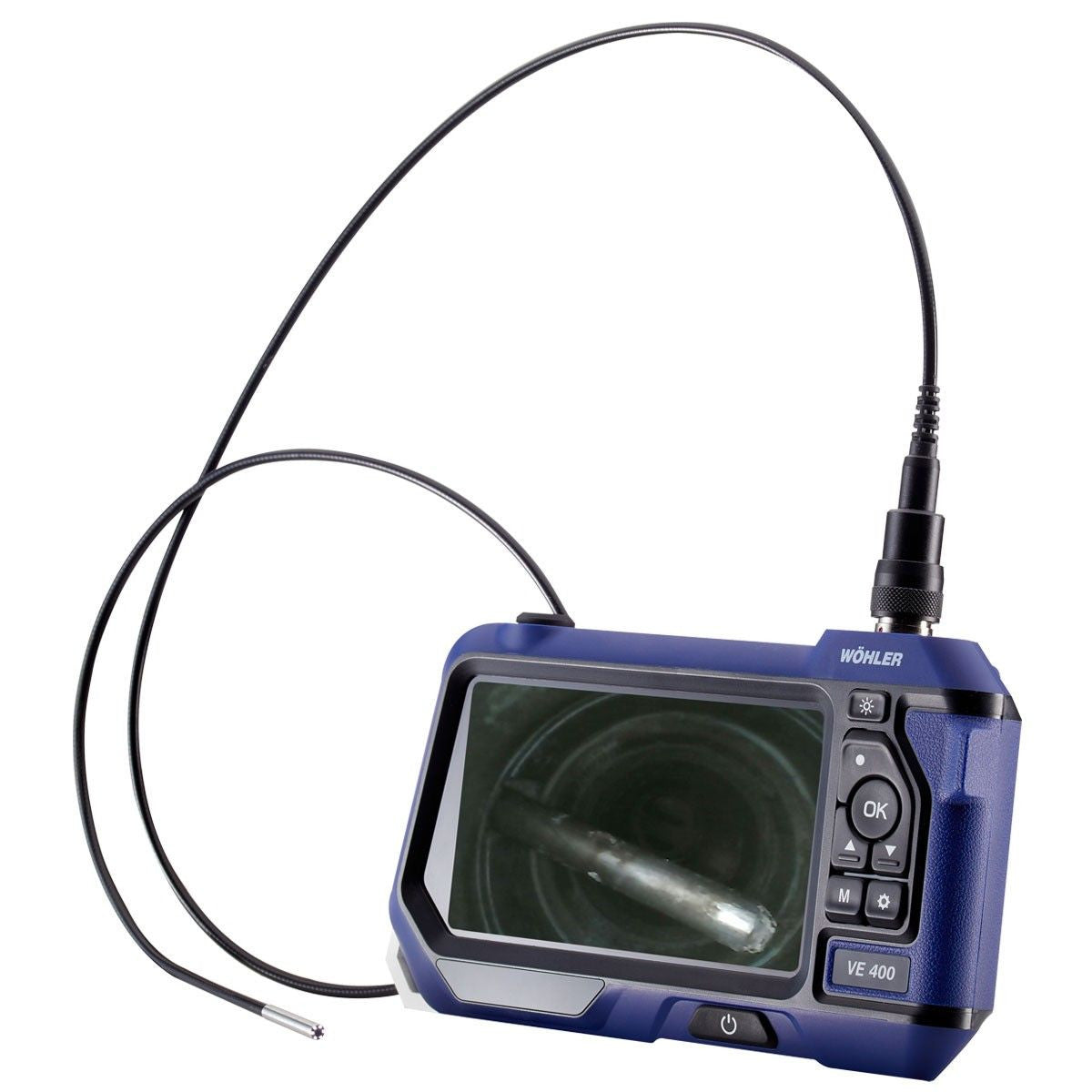

Wohler VE400 HD Video Endoscope
