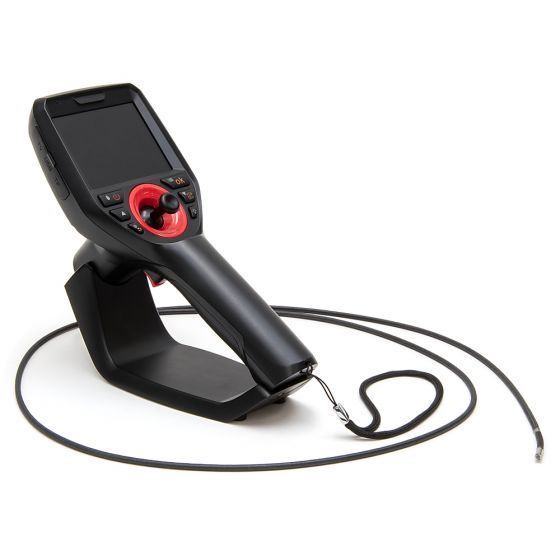

iShot® VistaScope LED Industrial Borescope 2.0mm DIRECT VIEW

Regular price $9,555.00
Sale price $9,555.00 Regular price
Sale Sold out

Quick Specs:

  • OD: 2mm (0.079")
  • Lengths available - 1M, 1.5M, 2M, & 3M
  • DOV: 0°
  • FOV: 120°
  • DOF: 2-50mm

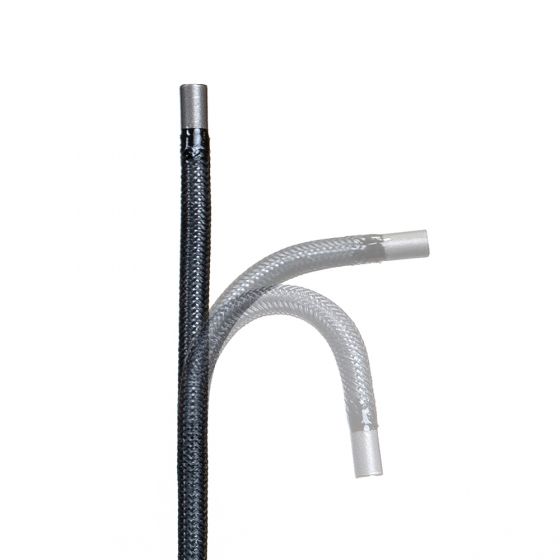

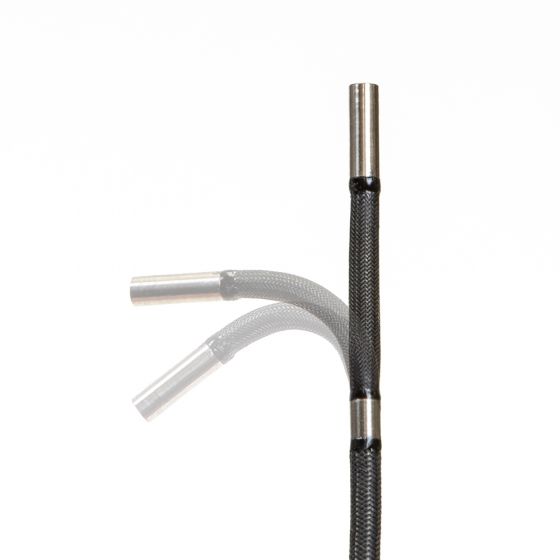

  • Articulation: 360 Degree/ 4-way controlled by joystick
  • Illumination: LED 2,200 Lux

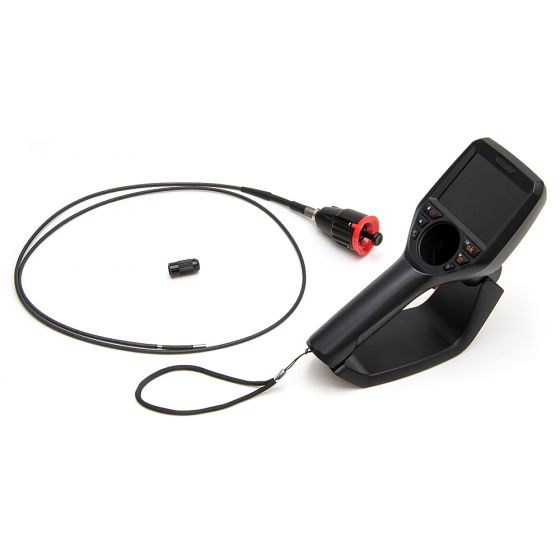

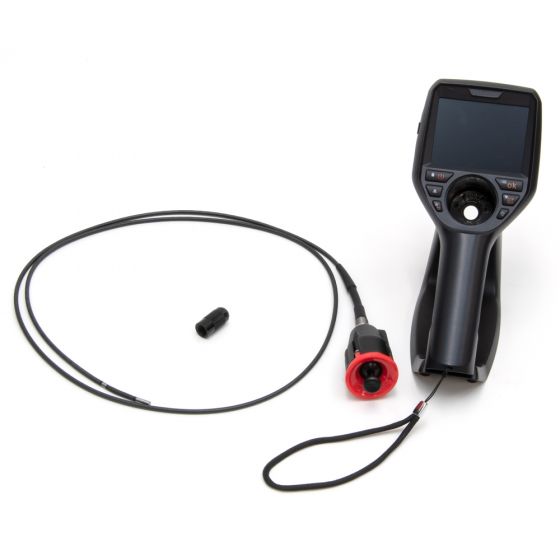

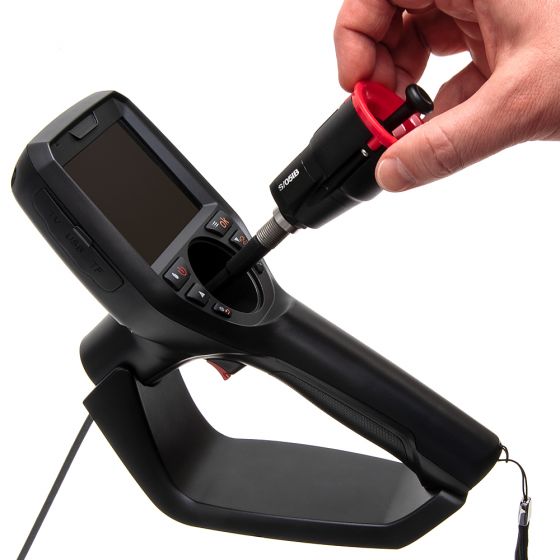

  • Industry pioneered insertion tube replacement technology can rapidly replace insertion tube of different specifications within 20 seconds.

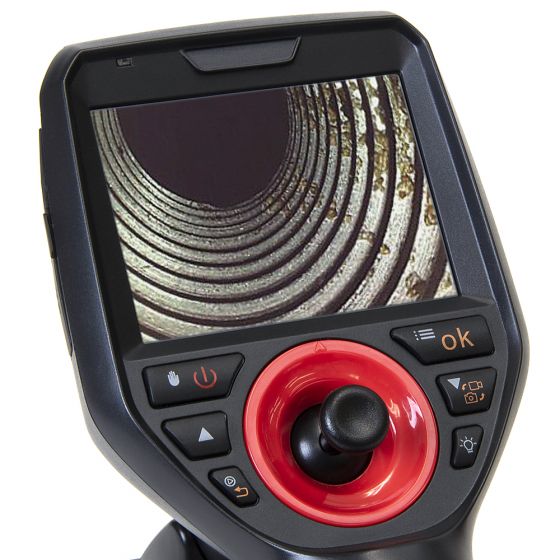

  • Built-in 3.5 inch Display: 640 X 480
  • Photo capture function while recording video
  • Output: USB/HDMI/SD Card Slot
  • The insertion tube and probe are waterproof, oil resistant and corrosion resistant (IP67)
  • Tungsten braided tube
  • Sapphire protective lens

The iShot® VistaScope 2.0mm with 4-way Casting Articulation with LED Illumination was developed after years of careful study and development of advanced technology, independent innovation, and research to address the needs of the Investment Casting Industry. It's portability and ease of use are designed for the challenges of the casting environment. With its 360° joystick, extremely tight 160° of articulation, finding the critical core passages is well within reach. It's lightweight, and portable design, including the vibrant 3.5" LCD screen, allow inspection to take place in any area of the facility.

Diameter 2mm
Lighting mode front LED
Length 1-3m
Camera Pixels 160,000
Image resolution 640*480
Optical System Illumination 2200lx
Depth of field 2-50mm
View Angle 120°
Articulation Manual Control joystick 360°all-way articulation
Tube material tungsten wire braided wear-resisting tube
IP Grade IP67(except 2mm optical fiber)

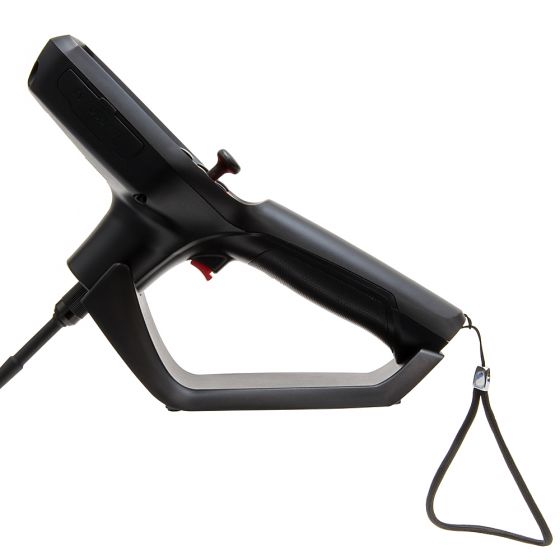

Basic parameters: host
Display size 3.5inch
Power Supply DC, battery 18650 Lithium battery: 3.7V,3200mAh,working time ≥4H
AC Power Support online charging, through USB cable+adaptor

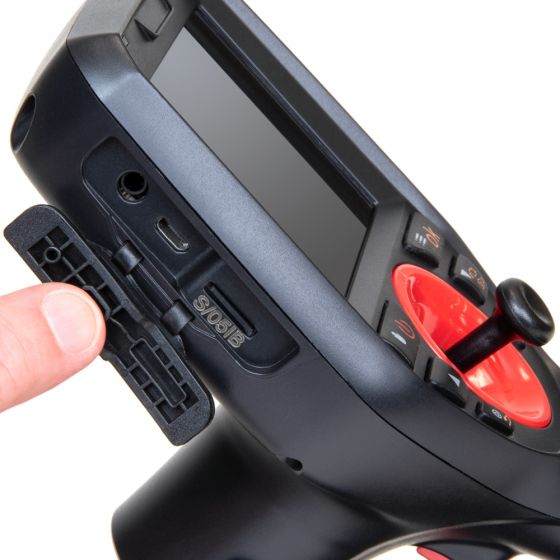

Output Port USB,HDMI,SD card slot
Weight (KG) 0.6kg(Including instrument case:3.05kg)
Product Size (cm) 24*10.2*12.6

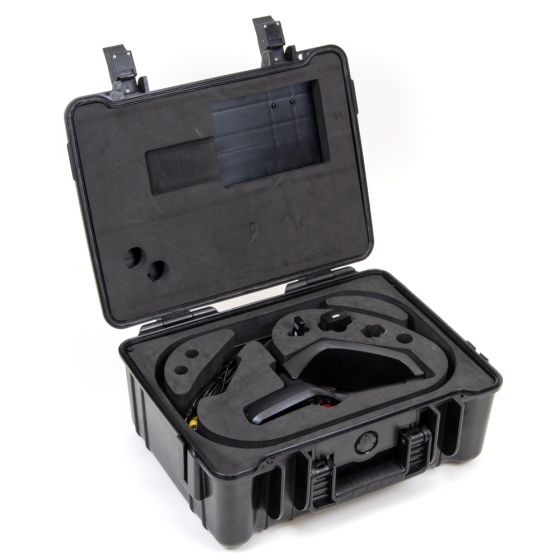

Instrument case size (cm) 41.5*33.5*15
Carton Size (cm) 43*35*16
Warranty Period 12 months
Software functions
Recording function 1.Taking image and video,able to capture image during video recording.
2.4 times zoom in real-time inspection ,still images can be partly 8 times zoom to check the details;
3.Video play fast forward, fast back
Assistant measurement Tracking cross cursor with scale
Image flip 90°/180°/270°flip
Image method Color,Black-and-white,Negative film
Brightness adjustment 0-6 level
File format Image:JPG/BMP,video:MP4
Storage SD card 8GB supplied (optional 32 GB)
