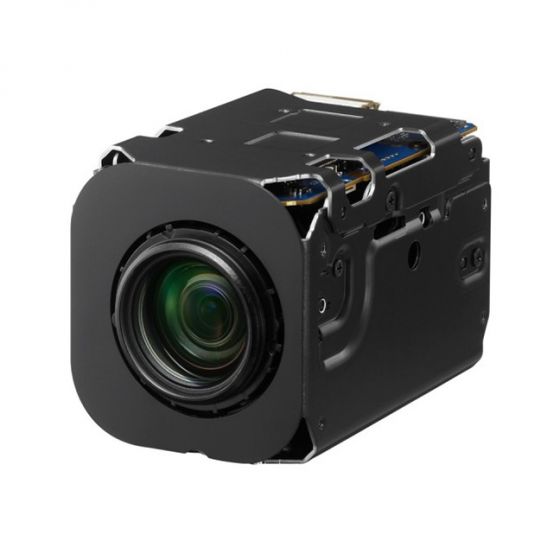

Sony FCB-EV7100 with 10x optical zoom
1/2.8-type Exmor™ CMOS image sensor
Full HD 1080/60p (1920 x 1080) picture quality
Approx.2.38 Megapixels
Progressive scan assures smoother pictures with reduced blur – ideal for capturing the detail in moving images with surveillance and security
Analog: Component (Y/PB/PR), Digital: Y/CB/CR 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.); SD VBS
2D/3D Noise Reduction
Visibility Enhancer and De-fog
Wide 130dB Dynamic Range method
Min Illumination: Color 0.35 lx (F1.8, AGC on, 1/30 s)
VISCA Communication Protocol
Custom camera solutions and integration services for robotics, drones, unmanned vehicles and aircraft, surveillance, police vehicle cameras, ROV camera, intelligent traffic cameras, RVI industrial cameras, video conference cameras, and house of worship cameras
Interfaces for HDMI, 3G-SDI, IP, PoE, GigE, USB 3.0
45.6 x 48.8 x 78.0 mm (1 13/16 x 1 15/16 x 3 1/8 inches)
210 g (7.4 oz)
This model does NOT offer Image stabilization

The Sony FCB-EV7100 features a 10x optical zoom len, and a high-performance 1/2.8-type Exmor™ CMOS image sensor achieving superb Full HD 1080/60p (1920 x 1080) picture quality, even in low-light environments. Progressive scan assures smoother pictures with reduced blur – ideal for capturing the detail in moving images.

Capture crisp, clear Full HD (1080/60p) images

The high-performance 1/2.8-type Exmor™ CMOS image sensor of the Sony FCB-EV7100 achieves superb Full HD (1920 x 1080) picture quality, even in low-light environments. Progressive scanning assures smoother pictures with reduced blur – ideal for capturing the detail in moving images.

Fast, Bright Lens with Rapid 10x optical zoom

The Sony FCB-EV7100 high quality lens offers a bright F1.8 maximum aperture and 10x optical zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups in security and surveillance applications.

StableZoom™

The Sony FCB-EV7100 camera's image stabilizer and optical/digital zoom are combined to enhance picture quality while maintaining the original horizontal angle of view, ensuring no compromise in image size and reduced blurring.

2D/3D Noise Reduction

Advanced noise reduction technology filters noise from the image for clearer results, especially in low light conditions. Noise reduction can be selected from five levels to suit a wide range of operating environments.

See more clearly with Visibility Enhancer and De-fog

Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. There’s also a de-fog feature with the Sony FCB-EV7100 camera that allows clearer viewing in foggy or misty scenes.

Wide dynamic range

Wide-D image processing technology gives the ability to see clear detailed images in high-contrast or backlit environments.

Clear vision round the clock with Day/Night

Benefit from optimized picture quality in changing light conditions – a frequent challenge in round-the-clock security operations. In high sensitivity mode the Sony FCB-EV7100 camera can operate effectively in lighting levels as low as 0.35 lx (ICR on).

Auto ICR (Auto IR-cut Filter Removal)

In low light conditions the Sony FCB-EV7100 camera automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness.

Spherical privacy zone masking

Areas of view can be selectively masked for privacy. Masked areas are automatically interlocked with the Sony FCB-EV7100 camera’s pan/tilt/zoom movements.

Choice of HD and SD output modes

Video signal outputs are available in a range of HD (digital and analog) and SD formats, reducing integration cost and complexity by avoiding the need for additional analog/ digital converters. Video output modes can be changed ‘on the fly’ during normal operation, without a hardware reboot of the Sony FCB-EV7100 camera.

One-cable connection for simpler integration

A single cable carries HD video signals plus VISCA communication and power supply. Integration flexibility is further supported by both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.

Wide range of features for versatile operation

Versatile Sony FCB-EV7100 camera operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement); Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/ slow shutter; Title display/Camera mode display (English).

Applications

Custom camera solutions and integration services for robotics, drones, unmanned vehicles and aircraft, surveillance, police vehicle cameras, ROV camera, intelligent traffic cameras, RVI industrial cameras, video conference cameras, and house of worship cameras

InterTest, Inc. is an Authorized National Systems Integrator and Distributor for Sony’s Visual Imaging Products division.

Camera Specifications

	Detail:
Image Device	1/2.8 type Exmor CMOS
Effective Pixels	Approx. 2.38 Mega Pixels
Digital Zoom	10x Optical, 12x (120x with optical zoom)
Horizontal Viewing Angle	67.0°(wide end) to 7.6°(tele end)
Minimum Object Distance	10 mm (wide end) to 800 mm (tele end) (Default: 320 mm)
Sync System	Internal
Electronic Shutter	1/1 s to 1/10,000 s, 22 steps
White Balance	Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Gain	Auto/Manual 0 to 43.5 dB (0 to 28 steps +2 step/total 15 steps); Max. Gain Limit 9.3 to 43.5 dB (6 to 28 steps +2 step/total 12 steps)
Wide Dynamic Range	Yes 130dB
Backlight Compensation	Yes
Privacy Zone Masking	Yes
Character Generator	20 characters/line, max. 11 lines
Focus System	Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
Picture Effects	E-Flip, Nega Art, Black & White, Mirror image, Color enhancement
Exposure Control	Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE

Video Output Specifications	Detail:
Lens Value	10x optical zoom; f=3.8mm (wide) to 38mm (tele); F1.8 to F3.4
S/N Ratio	More than 50 dB
Minimum Illumination	Color: 1.4 lx (F1.8, AGC on, 1/30 s) High Sensitivity Mode Color: 0.35 lx (F1.8, AGC on, 1/30 s)
Video Output	Analog: Component (Y/Pb/Pr); Digital: Y/Cb/Cr 4:2:2 via LVDS; (Signal format conforms to SMPTE 274/SMPTE 296.)

Interfaces Specifications	Detail:
Camera Control Interface	VISCA protocol (CMOS 5V level); Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit

General Specifications	Detail:
Dimensions (W x H x D)	45.6 mm x 48.8 mm x 78.0 mm
Weight	Approx. 210 g
Operating Temperature	-5 ℃ to +60 ℃
Storage Temperature	-20 ℃ to +60 ℃
Operating Humidity	20% to 80%
Storage Humidity	20% to 95%
Power Consumption	3.4W (zoom/focus inactive); 3.7W (zoom/focus active)
Power Requirements	6.0 V to 12.0 V DC

We're here to help

Block Camera

Sony FCB-EV7100 Block Camera with 10x Zoom and Full HD 1920 x 1080

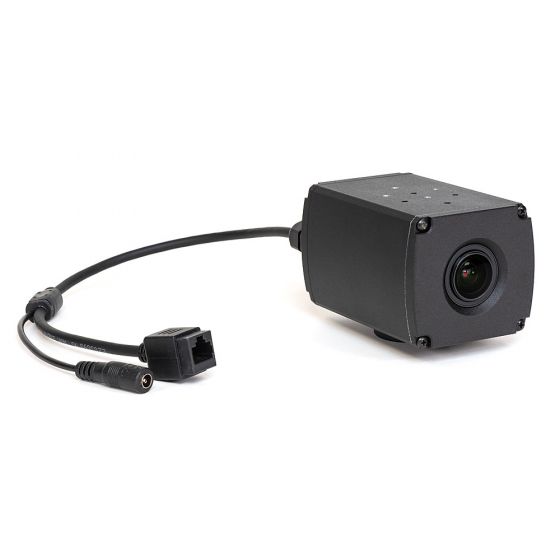

iShot® XBlock® IP POE 4K 12MP 3x Indoor Camera

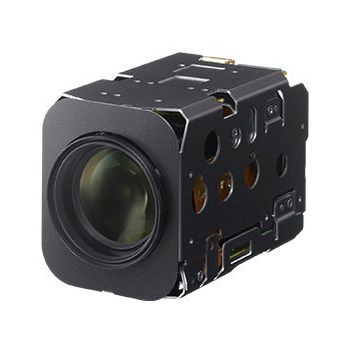

Sony FCB-EV7520 Block Camera with Full HD and 30x Zoom - Low Light 0.01 lx
