Wohler VIS 700 HD Camera Inspection System with 1.5" Camera Head - 7082
Regular price
$9,888.00
Sale price
$9,888.00
Regular price
Unit price
/
per
Sale
Sold out
Sold out
- HD touchscreen – 7" HD TFT-broad band color monitor for razor sharp recordings from any perspective
- Pan & Tilt Camera Head - 1.5" diameter detachable waterproof camera head (IP 67)
- Transmission of Live Images - via wireless LAN
- Adjustable Focus - motor-driven focus adjusted by touchscreen or joystick
- Camera head integrated with variable frequency transmitter
- Electronically determined position and angle of the camera head shown on the display
- Bright LED Lighting on camera head
- Battery operating time of 4 hours with a rechargeable Li-ion battery
- 32 GB SD Card for capturing and sharing video
- Fully equipped mobile solution in a rugged twin wall hard case
- Comments and Voice Note capabilities
The Wöhler VIS 700 HD digital video inspection with razor sharp high definition images, individual focus control for precise inspection, and now wireless locating. Super portable and operates on AC or DC power (4 hour rechargeable Li-ion battery). The Wohler VIS 700 is the ideal inspection camera for waste water pipes, flue gas and ventilation lines as well as NDT and plumbing applications.
Fully Digital Camera System
A new digital high-resolution sensor assures amazingly sharp images. With the Wohler VIS 700, professionals are able to plan their maintenance services on the basis of clearly visible facts. The displayed level indication ensures you to keep orientation in the pipe. The camera display shows the camera head position and angle for ease of navigation. The home function allows you to realign the camera head straight forward when needed. HD images are displayed for you on the brilliant, touch screen high-resolution monitor. The Wöhler VIS 700 is designed to transmit live video data to smart devices via Wireless LAN. While conducting an inspection, you have the option to stream live images and videos on a smartphone or tablet. You can also save all footage to an SD card for reviewing at a later time.

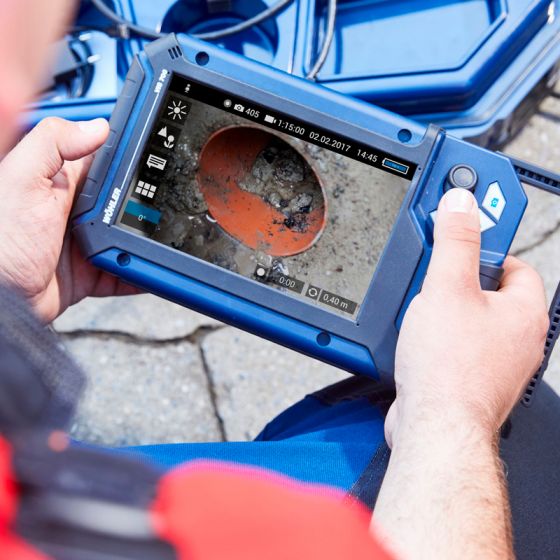

Focus Using Joystick and Touchscreen

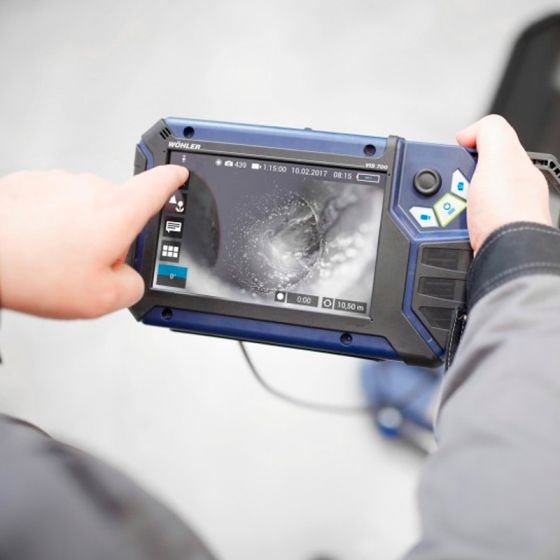

The focus function via touch screen or joystick makes it possible to precisely control the depth of focus. A simple tip on the joystick ensures a precise, crystal clear image on the screen. Additional settings and extras, such as the touch screen keyboard, are accessable by tapping the touchscreen monitor.
Advantages
• High Definition image quality
• 1.5 inch detachable waterproof pan & tilt color camera head (IP 67)
• 7" HD color touchscreen with adjustable focus via joystick/touch screen
• Built-in radio transmitter facilitates wireless location detection
• Position and level display for orientation during inspections
• On screen keyboard for typing comments / descriptions to photos
• Transmission of live images/video via Wireless LAN
Application
• Analyze damage and inspect:
• House connection pipes up to 8"
• NDT applications
• Flue gas systems of 2.5” and larger

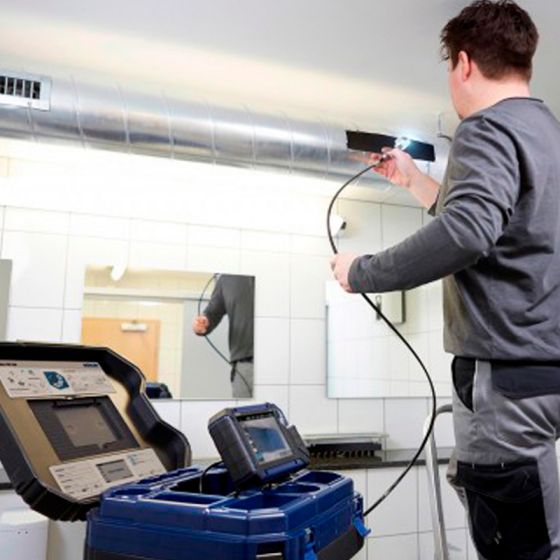

• Ventilation system ductwork
• False ceilings, hollow spaces, shafts
• Industrial machines / plant

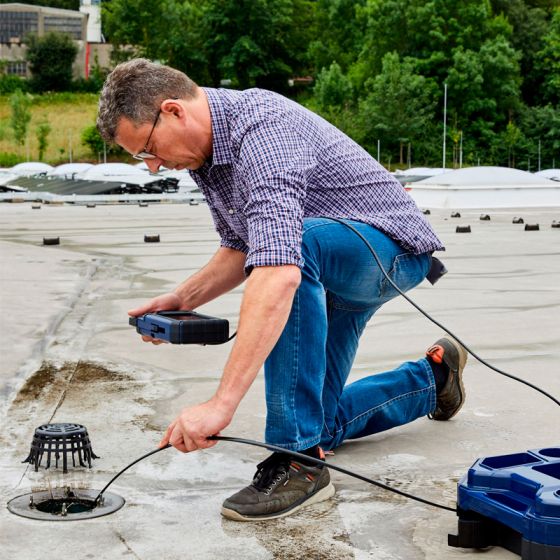

• Waste water lines of 2.5" and larger
Functionality
• HD touchscreen – razor sharp recordings from any perspective
• Adjustable depth of focus
• Optics pan 360° and tilt 180°- even the smallest amount of damage is viewable
• Camera head with integrated variable frequency transmitter
• Electronically determined position and angle of the camera head shown on the display

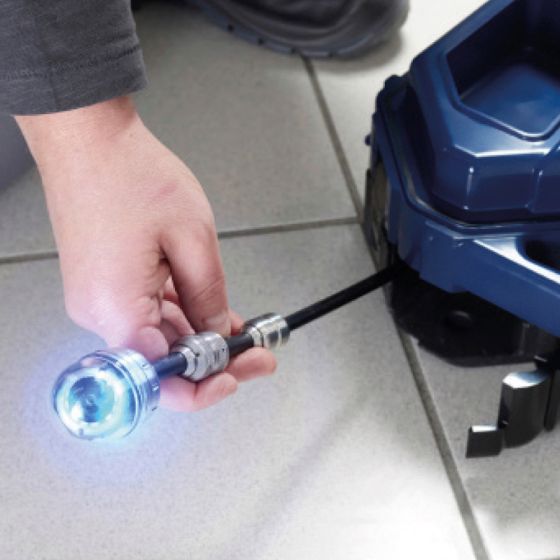

• Brightly illuminating color camera head, 1.5” in diameter and 2.5” in length, easily negotiates tight bends
• Electronic distance counter displays position on monitor
• Bright TFT color monitor for razor-sharp images
• Battery operating time of 4 hours with a rechargeable Li-ion battery
• Fully equipped mobile solution in a rugged twinwall hard case
• Comments features touch screen keyboard for typed notes
• Voice notes
• Fast and effective cleaning of the camera rod
Data management
• Simply record and store photos and videos on the 32 GB SD card for documentation and archiving purposes for you and your customers
• Wireless LAN interface
Location detection with Wöhler L 200 Locator (optional)
• Transmitter integrated in camera head makes it possible to precisely locate the camera head
• Pinpoint damage repairs to pipelines
• Telescopic holder makes it easy to locate damage under floors or in ceilings
• Chalk holder with lithographic chalk to mark located damage immediately
• Long-lasting rechargeable Li-ion battery
Scope of Delivery

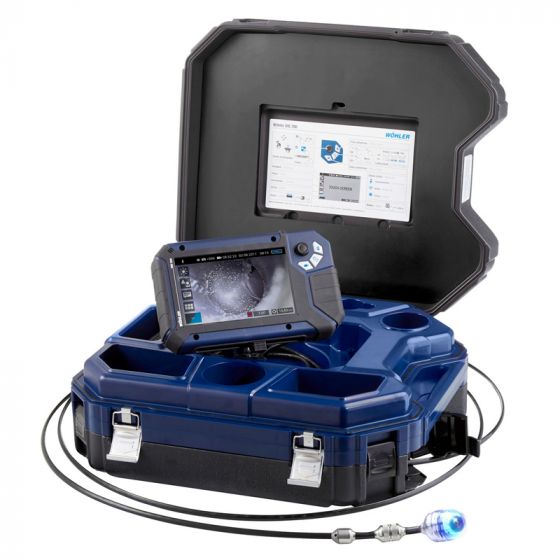

• Wohler VIS 700 Monitor with 7" HD TFT-broad band color monitor incl. 5' connection cable
• Glare shield
• Li-Ion battery
• Wohler HD pan- and tiltable camera head 1.5", detachable
• SD Card 32 GB
• Camera rod 0.34" x 0.22" – 100' long
• 3 replacement plastic domes
• Anti-slide mat
• USB charger with USB-C cable
• Plastic case
• Glare shield
• Li-Ion battery
• Wohler HD pan- and tiltable camera head 1.5", detachable
• SD Card 32 GB
• Camera rod 0.34" x 0.22" – 100' long
• 3 replacement plastic domes
• Anti-slide mat
• USB charger with USB-C cable
• Plastic case
Monitor
Dimensions housing ........................10 x 6 x 2 in
TFT display ......................................7" / 16:9 format
1280 x 800 px
Weight .............................................2 lbs.
Power supply ...................................USB C 5 V / 3 A
Power supply ...................................3.7 V, 11.4 Ah rechargeable Li-Ion battery
Battery operating time .....................4 h (battery status in display)
Operating temperature ....................32…104 °F
Storage temperature .......................-4…122 °F
Wöhler Pan & Tilt Camera Head 1.5 Inch
Type ................................................1/2.7" Color CMOS
IP rating ...........................................IP 67
Viewing angle, diagonal ..................160°
Focus distance ................................1 inch…∞
Light source ....................................10 white LEDs
Dimensions .....................................1.5 x 2.5 inches
Transmit frequency of Locator ........variable
Camera Rod
Length .............................................100 ft.
Diameter ..........................................33“ x .22“
Electronic meter counter
Resolution .......................................1 inch
Max. deviation .................................5% of reading
Memory
SD card ...........................................32 GB
Technology ......................................SD or SDHC, speed class 10
Recording capacity ..........................Approx. 3 GB/h
Resolution recording .......................1280 x 720 HD, max. 25 fps
Recording format .............................AVI (H264)
Double-Walled Plastic Case
Dimensions .....................................7 x 18 x 20 inches
Total weight incl. monitor,
camera head and push rod .............22 lbs.
Locator Receiver
Display ............................................Graphic camera position indicator
Output impedance,
headphones ....................................Typ. 32 Ohm
Frequency .......................................~9 kHz
Power supply ..................................3.7 V rechargeable Li-Ion battery
Operating temperature ....................0…104 degrees F
Storage temperature .......................14 °F…104 °F
Weight .............................................1.5 lbs.
Dimensions .....................................12 x 6 x 3 inches
Shipping Weight & Dimensions
Weight .............................................25 lbs.
Dimensions .....................................22 x 17 x 8 inches
