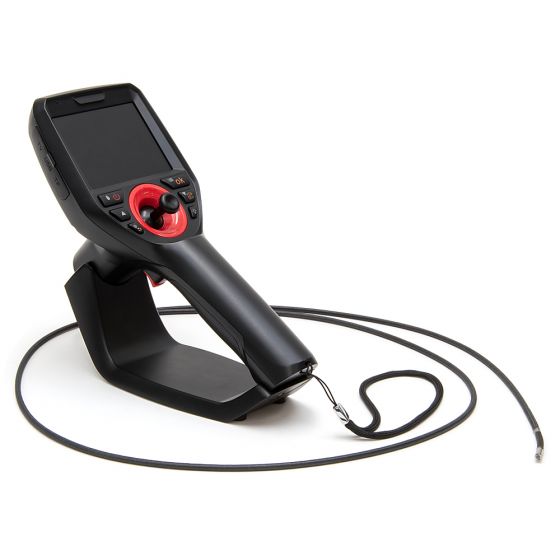

iShot VistaScope 6mm x 1.5M, 4-way Casting Articulation w/ LED Illumination

Regular price $3,500.00
Sale price $3,500.00 Regular price
Sale Sold out

  • Quick Specs:

    • OD: 6mm (0.236")
    • Length: 1.5M
    • DOV: 0°
    • FOV: 85°
    • DOF: 10-100mm

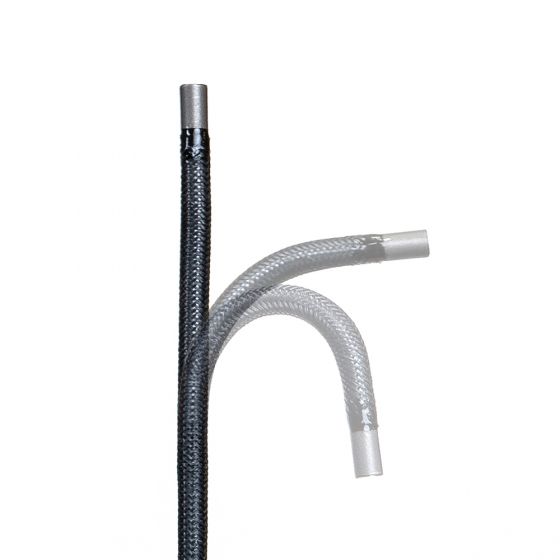

    • Articulation: 360 Degree/ 4-way controlled by joystick
    • Illumination: LED 16,000 Lux

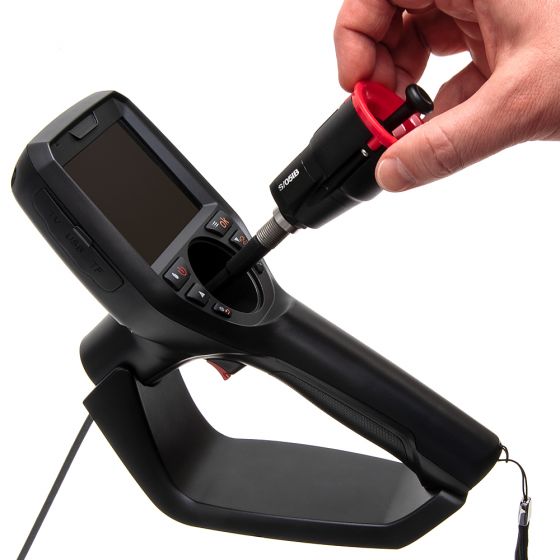

    • Industry pioneered insertion tube replacement technology can rapidly replace insertion tube of different specifications within 20 seconds.

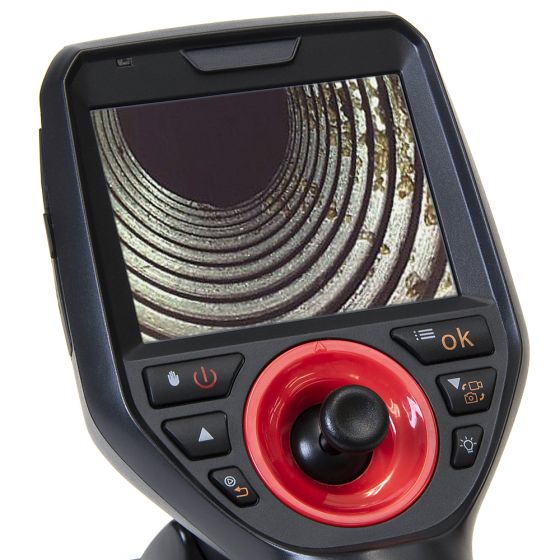

    • Built-in 3.5 inch Display: 1280 X 720
    • Photo capture function while recording video

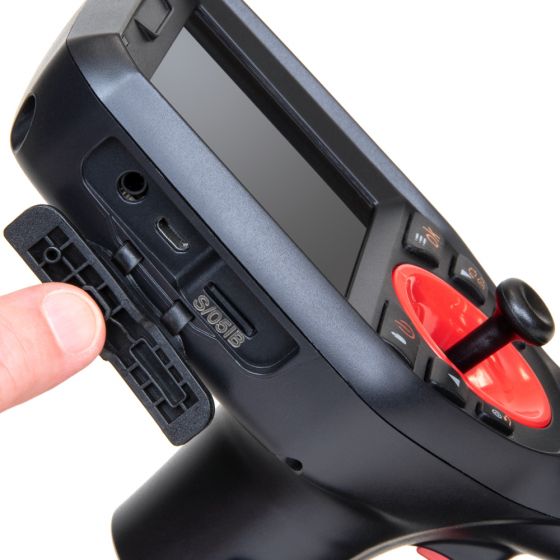

    • Output: USB/HDMI/SD Card Slot
    • The insertion tube and probe are waterproof, oil resistant and corrosion resistant (IP67)
    • Tungsten braided tube
    • Sapphire protective lens

The iShot VistaScope 6mm x 1.5M, with 4-way Casting Articulation and LED illumination was developed after years of careful study and development of advanced technology, independent innovation, and research to address the needs of the Investment Casting Industry. It's portability and ease of use, make it an easy to pick up inspection tool, that is designed for the challenges of the casting environment. With it's 360° arbitrarily oriented joystick, extremely tight 160° of articulation, finding the critical core passages is well within reach. It's lightweight, and portable design, including it's vibrant 3.5" LCD screen, allow inspection to take place in any area of the facility.

  • Camera Diameter(mm) Φ6mm
  •  Camera Material Titanium alloy
  • Camera Pixel 300,000
  • Depth of Field Standard: 10mm~100mm
  •  Angle of Field 120°
  • Image Magnification 4X
  •  Light Control 7 levels
  • Bright/Chroma/ Contrast Ratio Adjustment 0-16 levels
  • White Balance Auto white balance
  • Bending Control 360°all-way mechanical control/tow-way articulation
  • Bending Angle ≥160°
  • Effective Working Length 1m
  • Insert Tube Quadruple tungsten-braided tubes
  • Language Chinese, English, Russian, ect.
  • Display Highlight 3.5 inches TFT LCD Display
  • Resolution 640*480
  • Image/Video Format JPEG/AVI
  • Image Resolution 640*480
  • Host Structure Handheld Design
  • Memory Standard SD card:8G, Maximum: 32G
  • Data I/O port Micro-USB port
  • Video output port mini HDMI
  • Probe articulation control: The speed of the probe articulation is controlled byrocker.Release the rocker to complete
  • Waterproof Camera/Object glass/Tubes:IP67
  • Host Working Time ≥4.5 hours
  • Weight ≤0.45kg(with batteries)
  • Power Supply Rechargeable lithium battery(dismountable)
  • Battery Capacity 4.2V,3200mAh
  • Power Consumption 3W Charging Parameters DC5V, Maximum current:1A
  • Warranty Period Free charge for one year, life-long maintenance.
